An RJ11 I/O Keystone Jack is a modular connector used in telecommunications and networking, specifically designed for connecting devices that require a telephone line or other low-speed data connection. It is part of the larger keystone jack system, which allows the installation of different types of connectivity options into wall plates or patch panels.

Here's a breakdown of the key features:

1. RJ11 Connector:

• RJ11 stands for "Registered Jack 11," which is a standard used for telephone wiring. The RJ11 connector typically has 4 or 6 pins (though 6-pin versions are rarely used in the context of residential telephony).
• It is commonly used for connecting landline phones, fax machines, modems, and other devices requiring a telephone line.
• The RJ11 connector uses telephone cables (typically 22-26 AWG) to make the connection.

2. Keystone Jack:

• Keystone jacks are a modular type of connector used in wall plates, patch panels, or surface-mount boxes to provide quick and easy connections for a variety of wiring types (e.g., telephone, network, audio, video).
• The "keystone" refers to the standard size and shape of the jack, making it interchangeable with different types of connections.

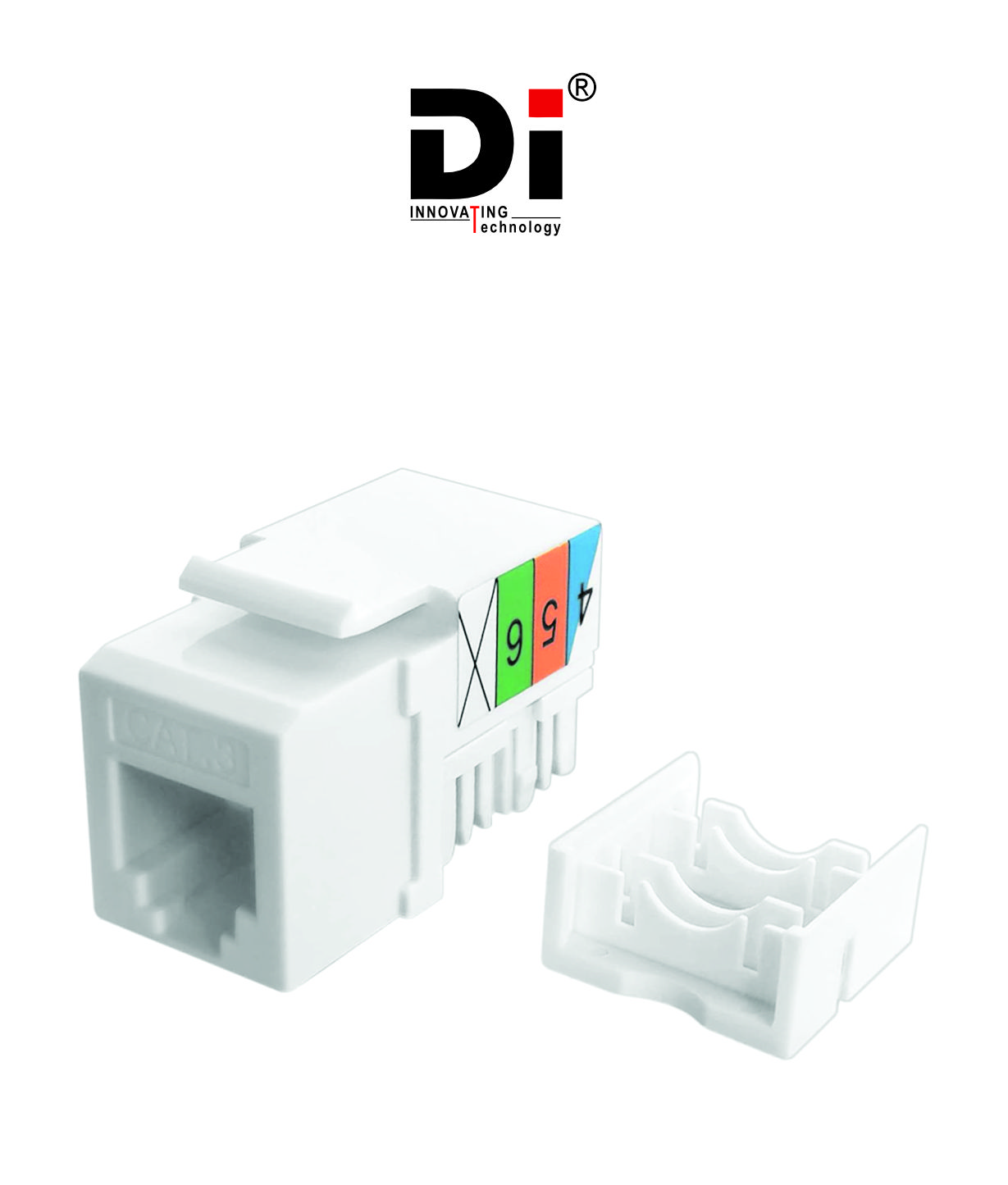

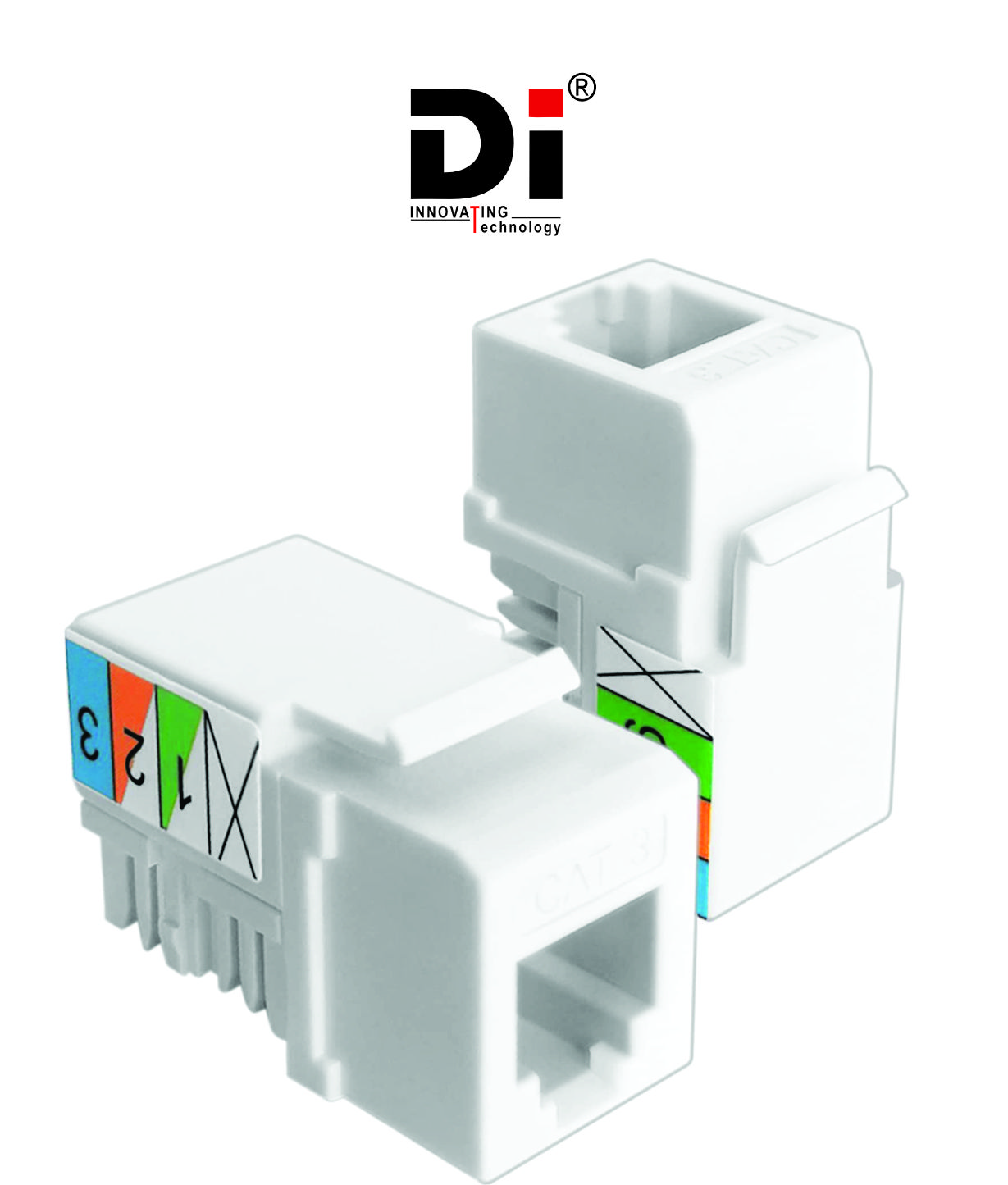

• The RJ11 keystone jack is designed to be inserted into a keystone-style wall plate or patch panel. The back of the jack will have wire terminals (usually screw or IDC – insulation displacement connectors) that allow you to connect wires to the jack.

3. Applications:

• Telecommunication: Primarily used for connecting telephones, fax machines, and other telephone-based devices to the wiring system.
• Data transmission: While not commonly used for high-speed data, it can be used for low-speed data devices such as older modems.
• Home or Office Wiring: Can be installed into wall plates to provide convenient and clean telephone connections.

4. Installation:

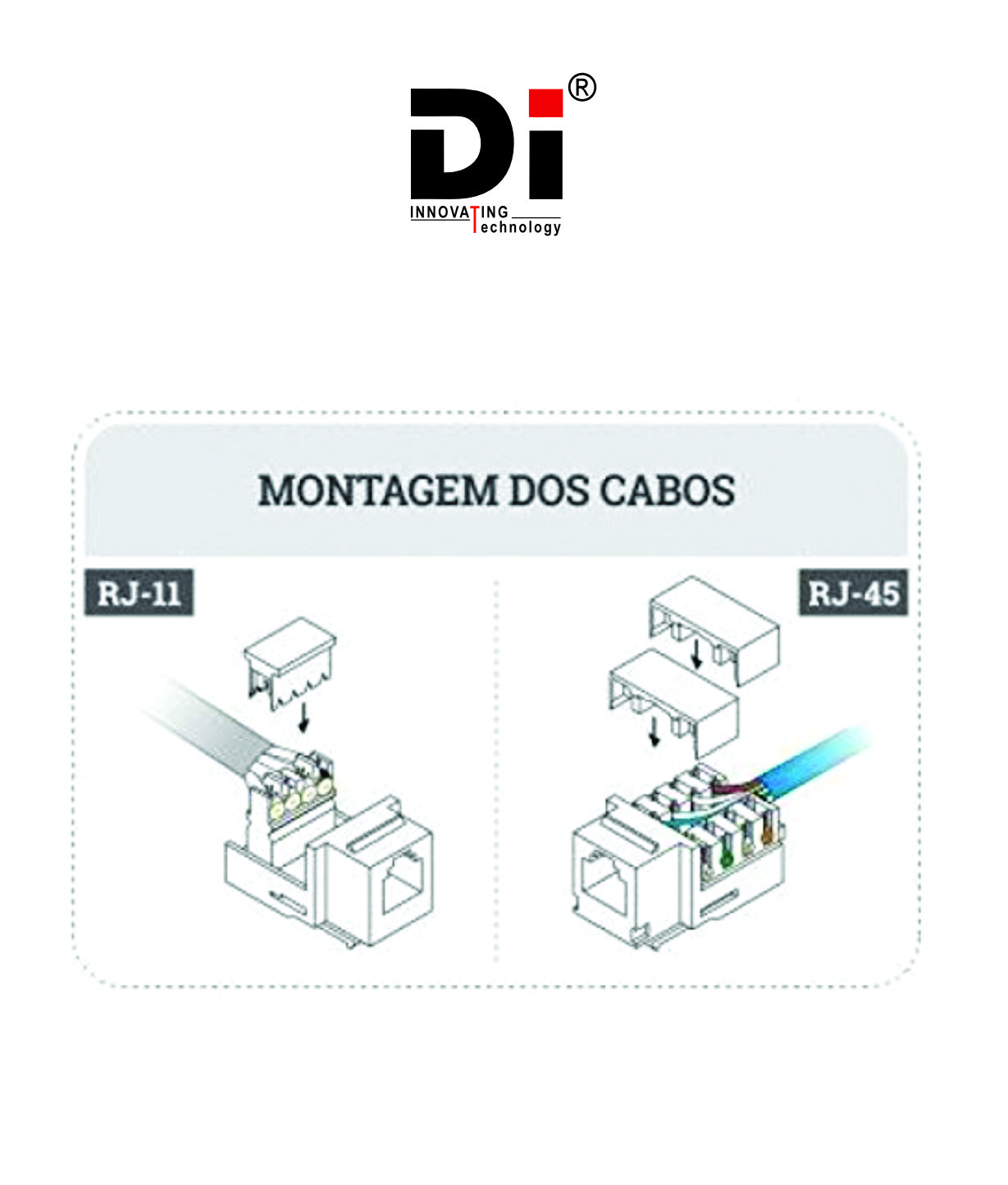

• The RJ11 Keystone Jack can be easily installed into a keystone-compatible wall plate. Once installed, wires (typically 2-4 pairs of copper wires) are terminated at the back of the jack using either a punch-down tool (for IDC connectors) or screw terminals.

5. Benefits:

• Modularity: Easily replaceable and customizable based on specific needs.
• Organization: Helps organize and manage various connections in homes, offices, or data centers.
• Easy Maintenance: If the jack or wiring becomes damaged, it's simple to replace without disturbing the entire system.

If you're installing or replacing a keystone jack in a telecommunication setup, make sure the jack you choose is designed to support RJ11 connections.
