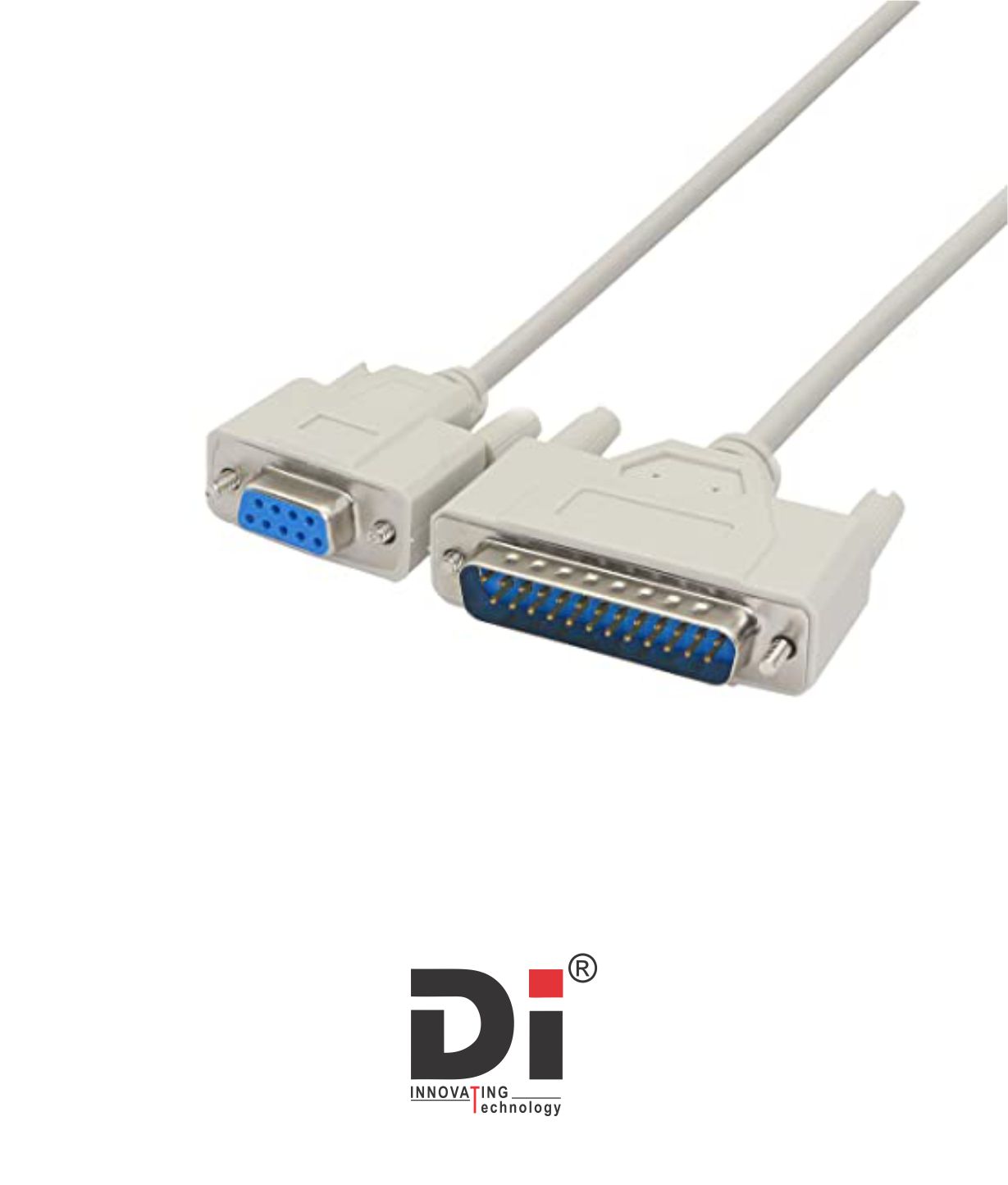

A **9-pin female to 25-pin male serial cable** is typically used to connect devices with different types of serial ports. Specifically, the 9-pin female connector is commonly used for a **DB9** serial port (often associated with RS-232 communication), while the 25-pin male connector is for a **DB25** serial port (another RS-232 variant, but with more pins for different wiring options).

Here’s a breakdown of what each connector typically represents:

- **DB9 (9-pin female)**: This is a 9-pin connector commonly used on modern computers, laptops, and devices for serial communication.

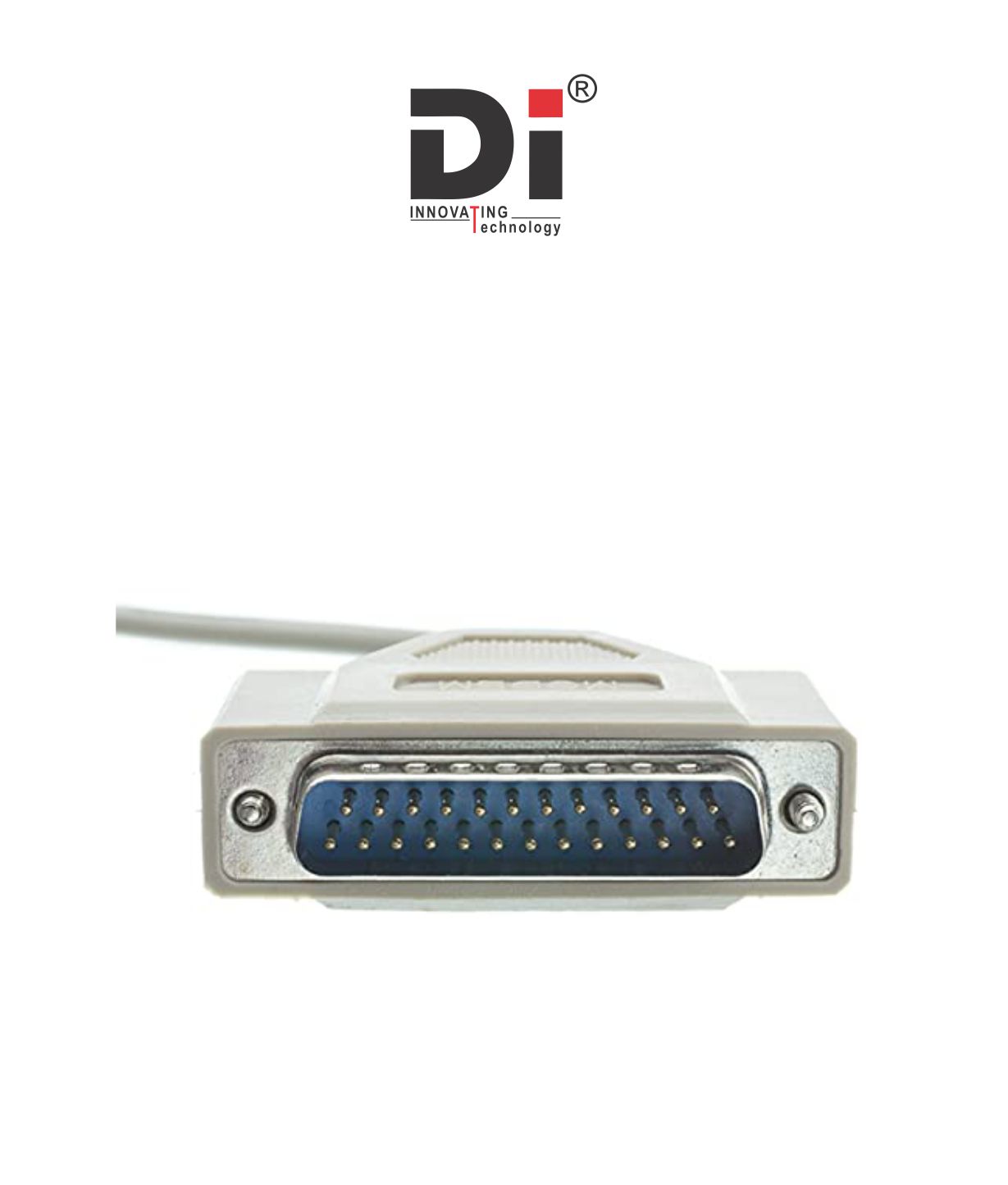

- **DB25 (25-pin male)**: This is an older, larger connector that was more common in older computers and industrial equipment.

### Uses for the 9-pin Female to 25-pin Male Serial Cable:

1. **Connecting a computer (with a DB9 serial port) to an older device or equipment that uses a DB25 port**.

2. **Serial communication** between devices that require different pinouts.

3. **Data transfer** for devices like modems, printers, and industrial machinery.

### Pinout Mapping:

Since the DB9 and DB25 connectors use different pin configurations, the pinout might vary depending on the specific application. Here is a common mapping for RS-232 serial communication:

- **DB9 Pin 1** ↔ **DB25 Pin 1** (DCD)

- **DB9 Pin 2** ↔ **DB25 Pin 3** (TXD)

- **DB9 Pin 3** ↔ **DB25 Pin 2** (RXD)

- **DB9 Pin 4** ↔ **DB25 Pin 20** (DTR)

- **DB9 Pin 5** ↔ **DB25 Pin 7** (GND)

- **DB9 Pin 6** ↔ **DB25 Pin 6** (DSR)

- **DB9 Pin 7** ↔ **DB25 Pin 8** (RTS)

- **DB9 Pin 8** ↔ **DB25 Pin 5** (CTS)

- **DB9 Pin 9** ↔ **DB25 Pin 4** (RI)

When purchasing or using such a cable, make sure the pinout is compatible with your devices to ensure proper signal transmission.
