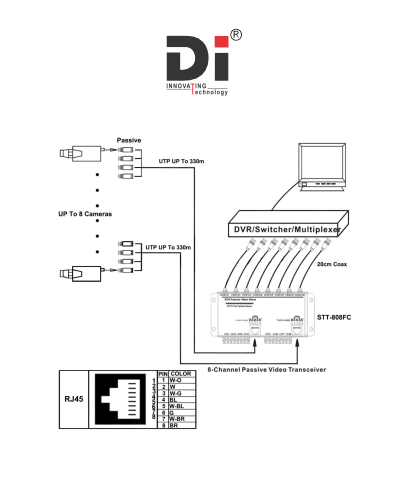

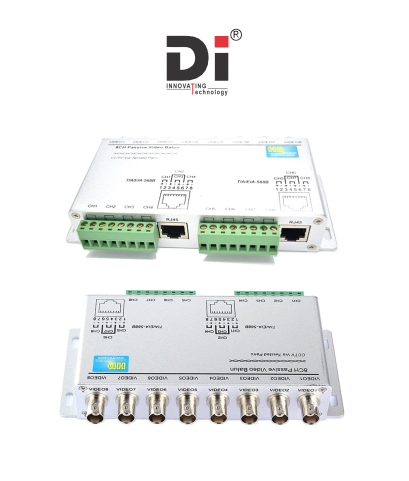

A UTP (Unshielded Twisted Pair) Video Balun (Passive) 8CH is a device used for transmitting video signals over standard twisted-pair cables (such as Cat5e or Cat6) instead of traditional coaxial cables. It is specifically designed to support multiple video channels, typically for use with CCTV (Closed-Circuit Television) camera systems.

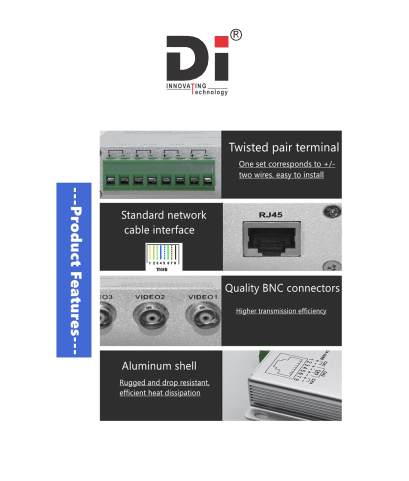

Key Features:

• Passive Balun: This means the balun does not require an external power source. It works by converting the video signal into a format suitable for transmission over UTP cables and then converting it back at the receiving end.
• 8 Channel (8CH): This indicates that the balun is designed to handle up to eight separate video signals, making it suitable for multi-camera surveillance setups.
• UTP Cable: UTP cables, like Cat5e or Cat6, are used for the transmission, which are commonly found in networking systems. The use of UTP can simplify installations and reduce the cost as it can carry both video and sometimes power signals.
• Cost-Effective: Passive video baluns are often used in environments where the transmission of video over long distances is required without the need for active amplification.

Benefits:

1. Long Distance Transmission: UTP cables can support video transmission over greater distances than traditional coaxial cables, especially when using higher-quality UTP (like Cat6).
2. Cost and Installation Efficiency: UTP cables are less expensive and easier to install due to their smaller size and flexibility. In comparison, coaxial cables are bulkier and more costly.
3. Compact and Durable: Since it is passive, the balun has no internal components that would require power or maintenance, making it simple and reliable.

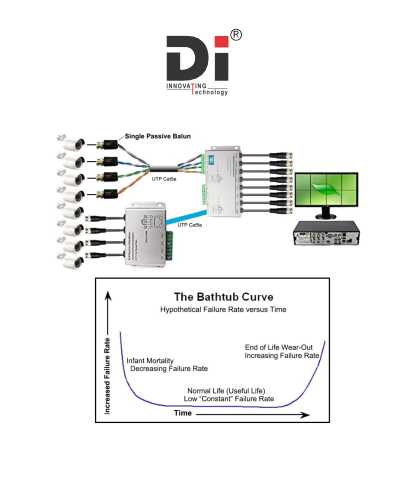

4. Multi-Channel Capability: A single 8-channel balun can simplify installations for multi-camera systems, reducing the number of individual baluns required.
